They are two types of Clarifiers |
|
 |
HRSCC |
|
|
Lamella Clarifier |
|
|
|
|

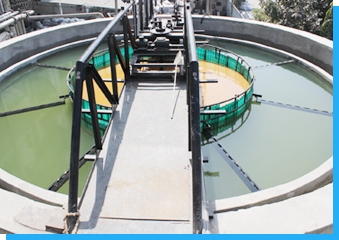

| High rate solids contact clarifier ( HRSCC) |
|
| we are the manufacturer of reactivator clarifier consists of the followings main components which are grouped into static and dynamic sub assemblies. |
|
Static assemblies’ components: Dynamic assemblies’ components: |
|
|
|
Fixed bridge |
|
|
Launder and radial collector pipes |
|
|
CDetention hood |
|
|
Draft tube and cone |
|
|
|
|
|
scrapper drive |
|
|
Scrapper shaft |
|
|
Recirculation shaft |
|
|
Recirculation impeller |
|
|
|
|
| |
Advantages of the HRSCC |
| |
|
|

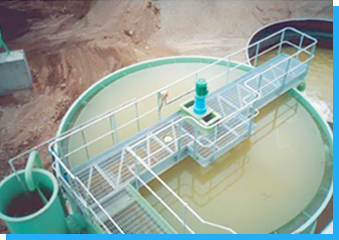

The solids contact type clarifier is a high rate water treating clarifier, which produces treated water of highest quality with minimum time, space and chemicals. |
|
|
In solids contact type clarifier coagulants and large quantities of recirculating sludge’s are thoroughly mixed and are retained in intimate contact for a prolonged period of time in the draft tube and cone sections of the solid clarifier. |
|
|
The tank and structural support design is completely self supporting for continuous service and compatible for supporting external loads such as walkways, ladders etc. |
|
|
|
Minimum building space requirements and building height clearances. |
|
|
Simple and straight forward operation requiring less operator attention and minimum maintenance. |
|
|
|
 |
|
|
| Advantages of the HRSCC: |
|
|
|
The solids contact type clarifier is a high rate water treating clarifier, which produces treated water of highest quality with minimum time, space and chemicals. |
|
|
In solids contact type clarifier coagulants and large quantities of recirculating sludge’s are thoroughly mixed and are retained in intimate contact for a prolonged period of time in the draft tube and cone sections of the solid clarifier. |
|
|
The tank and structural support design is completely self supporting for continuous service and compatible for supporting external loads such as walkways, ladders etc. |
|
|
|
Minimum building space requirements and building height clearances. |
|
|
Simple and straight forward operation requiring less operator attention and minimum maintenance. |
|
|
 |
| |
|
|
|
|
| LAMELLA CLARIFIER/ TUBE SETTLER |
|

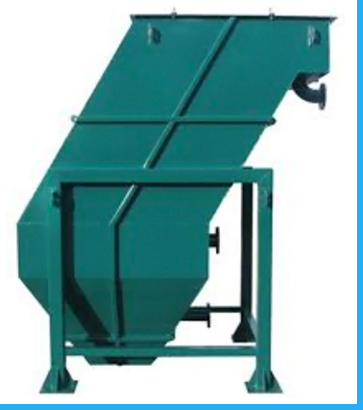

| We are Leading Manufacturer, Supplier, Dealer Of Compact Lamella Clarifier . Our lamella clarifier/ Tube Settler is a compact, inclined plate type clarifier used for clarification of water & waste water having higher suspended and colloidal particles. This is based on settlement of colloidal particles by providing a larger surface area. The lamella clarifier provides a means of water clarification at a large saving of surface area. (up to 90 %).High settling surface area (10-12.5 M2M) leads to very small tank volume and detention time requirement is also reduces drastically. These tube settlers are designed to the specific requirement of the customer. |
|
| Operating Principle: |
|
| Our clarifier with a series of inclined plates are arranged to form a separate sedimentation chamber between adjacent plates. Raw water is first fed to static mixer and chemicals such as alum, poly electrolyte are added prior to static mixer for proper mixing of chemicals in water. Water from static mixer enters in flocculator in which paddle type agitator is provided for gentle mixing. Polymer is added for flocculation of coagulated particles |
|
| The flocculated water enters the lamella near the bottom section of the plates and flows upward between them. |
|
| Standard Features: |
|
|
|
Structural steel support legs |
|
|
1/4" minimum tank wall thickness |
|
|
Epoxy painted carbon steel tank |
|
|
|
Individually removable FRP plates |
|
|
Adjustable effluent weir plates |
|
|

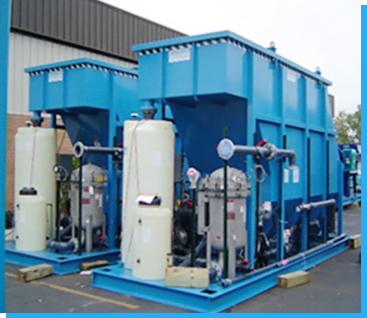

Standard units can be manufactured for flows from 2 to 75 m3/hr and above, in a single above grade tank |
|
|
One-piece prefabricated units are available with up to 1000 square ft. of effective settling area. |
|
|
One-piece construction with integral flash mix/floc compartments for smaller units |
|
|
|
|
|
|
| Available Options: |
|
|
|
Flash mix/flocculation tanks with mixers |
|
|
Full FRP or stainless steel construction |
|
|
Concrete tank designs |
|
|
Special coatings and plate materials |
|
|
Integral mechanical sludge thickener |
|
|
Access platform and ladder |
|
|
In-house laboratory analysis for equipment optimization |
|
|
Potable water design |
|
|
Gasketed and removable covers |
|
|
Automatic desludging |
|
|
Instrumentation and controls |
|
|
Chemical feed equipment |
|
|
Sludge handling and dewatering |
|
|
Pilot size units for on-site testing |
|
|
 |
|
|
| Applications |
|
|
| Especially from river, dam and lakes will have high amount of turbidity and suspended solids which will be removed by our unique Lamella Plate Clarifier technology. These clarifiers with no moving parts and easy operation and maintenance occupy 1/10 of the space of a conventional clarifier and handle up to 2000 ppm turbidity easily. |
|
